Product information
- ACOEM | EAGLE
- Wireless monitoring system
- Ease of deployment
- Managing machines with variable conditions
- Simply move sensors and start monitoring it. That should give you some new ideas for improving the reliability of your facilities
- Accurex™ automatic diagnostic

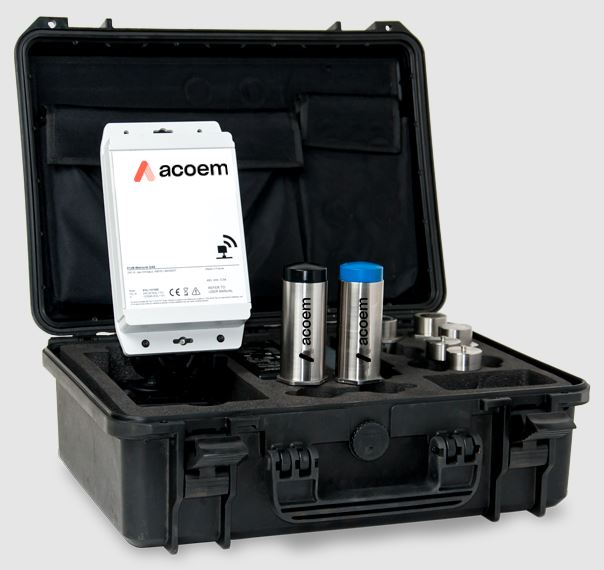

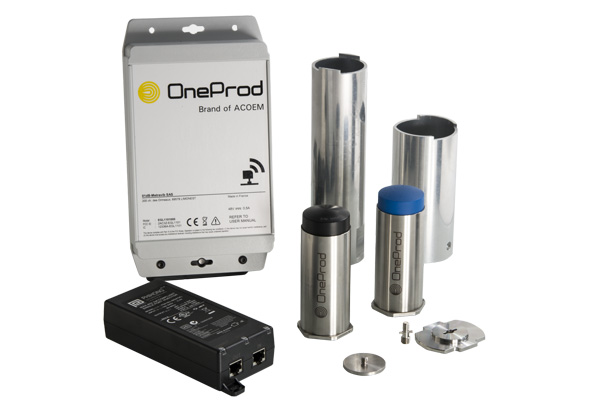

EAGLE is a wireless monitoring system for critical rotating machinery. It measures automatically vibration in three directions as well as the bearing temperature with automatic diagnosis.
Depending on the condition monitoring strategy, many machines may be monitored using portable data collection, where vibration measurements are performed manually at scheduled intervals (e.g. every month). EAGLE is easy to install, and also easy to move: once a fault is identified on a critical machine, it is now possible to move EAGLE sensors to monitor the machine condition with much shorter intervals (e.g. every hour), to avoid any unexpected failure, improve the overall availability of the process, and schedule maintenance operation only if that’s really necessary. This smart wireless unit embeds signal processing: Advanced indicators, as well as envelope FFT are calculated locally, thus enabling measurements to be recorded if a vibration or bearing temperature alarm occurs.
Product information
- Machine Sentry | MSF-1
- Wireless vibration sensor
- Application: variable process, hard to access assets or bad actor or critical assets
- Internal memory store for up to 5000 readings
- High speed data transfer via Bluetooth
- Programmable data acquisition rate
- Tri-axis vibration sensor.
- ATEX Zone 0 certified – suitable for almost any application
Semi-continuous monitoring reduces the chance of undetected fault conditions being missed. The sensor incorporates a 3 channel multiplexed data acquisition system connected to a tri-axial sensor to give full 3-axis support.

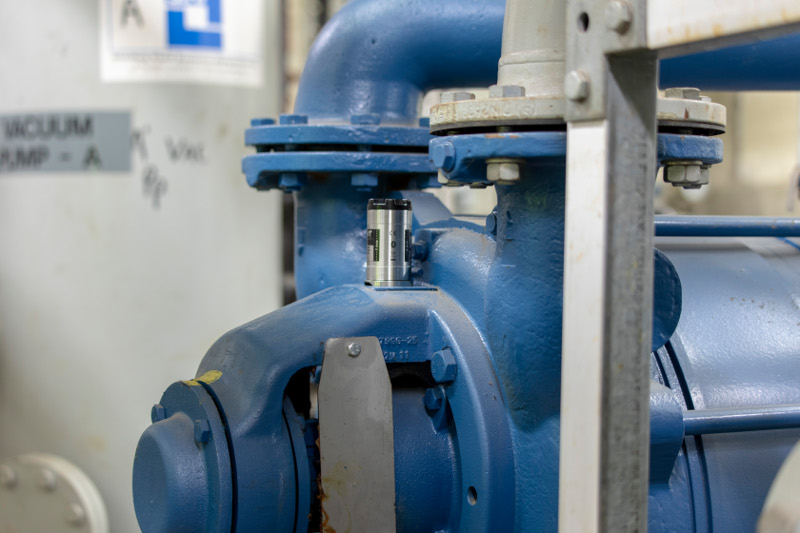

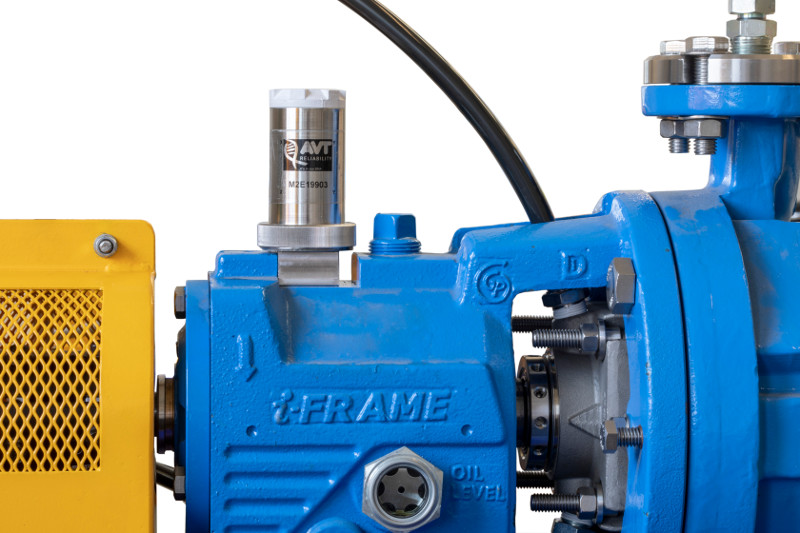

The Machine Sentry® MSF-1 sensor can be paired to any Android tablet or smartphone using standard Bluetooth® communications, to provides safe and efficient data collection from up to 25m away. The sensor can either be permanently mounted or temporarily installed using the optional magnet attachment. Assets which would normally be difficult to monitor using a traditional wired accelerometer can now be measured with ease (e.g. collection points behind guards and large or moving assets such as gearboxes on agitators). The sensor uses a unique combination of low energy Bluetooth® and classic Bluetooth® protocols to optimise battery life and increase data transfer speed.
